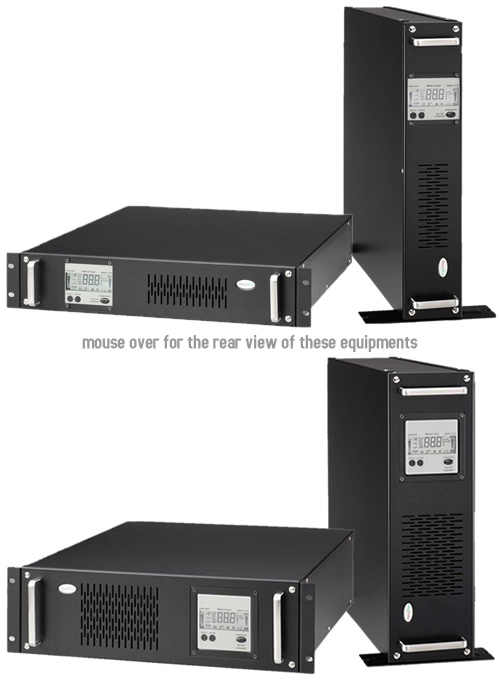

Smart Rack Series

SR-1100 / 1650 / 2200 / 3300 / 4000 (Rack/Tower Convertible, optional)

Besides the advantages mentioned in the Smart Sine series in tower type, the series also includes "Hot-swappable" feature and SNMP slot in case that users need it any time. The voltage regulation of the series is similar to an On-line UPS; however, the series provides efficiency over 96% under normal power condition. Smart battery management with two charge modes, quick charge and trickle charge, are provided to maintain the batteries in the best condition.

The special design of set-up software, UPS Wizard, which will allow users to adjust the voltage-transfer points, charging voltage, & green mode level, etc. Besides LED display, the series also applies full function LCD display; and more, you may apply the buttons around the LCD screen for the above set-up adjustment. (Click here for more information of the LCD display)

Special Feature

• Smart backup time estimation
• Adjustable voltage sensitivity, voltage-transfer points, & charging voltage.
• Generator compatible
• Hot-swappable batteries
• Automatic restart of load after UPS shutdown
• Smart AVR function (Two buck / boost modes)
• Cold-start capable
• Audible alarm
• Network manageable (SNMP optional)
• Full function of LCD display (LED display optional)
• Smart battery management
• Intelligent double stages of charging control

Specification Sheet

To obtain this product's specification sheet, please click here.

Arcobat reader is required to view these catalogue, click here to download it.
