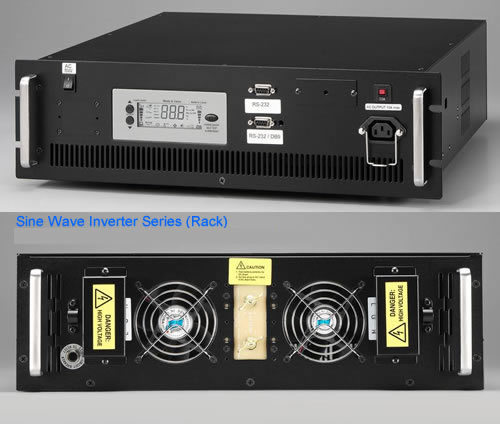

Sine Wave Inverter Series (Rack & Tower)

Rack: EVR-1000 / 1700 / 2500 / 3500 / 4000

Tower: EVT-1000 / 1700 / 2500 / 3500 / 4000

The series of inverter applies Line-Interactive technique to produce pure sine wave voltage at inverter mode and to provide tight voltage regulation (AVR, or Auto Voltage Regulation) at by-pass mode (optional function). The inverter is the microprocessor based design with tight regulation, Low THD, quick dynamic response and high accuracy of output frequency. Through the LCD buttons, you can adjust the inverter with different output voltages and frequencies in different areas.

RS-232 communication port(s) is applied for sending values of input voltage, output voltage, battery voltage, output power level and inverter status; with the RS-232 interface, you can read the status of inverter through PC, or connect SNMP card to control the inverter through internet. (Click here for more information of the LCD display)

Please mouse over below picture to pause the image rotation:

Special Feature

Sine Wave output.
Wide DC input range.
Output short circuit protection.
DC input polarity protection.
Designed for any kind of load.
Adjustable low battery shutdown level.
Automatic restart of load after overload shutdown.
Audible alarm.
Thermal control cooling fan.
Generator compatible (for units with AC input).
Smart Bypass function (for units with AC input).
Full function of LCD display (LED display optional)

Specification Sheet

To obtain this product's specification sheet, please click here.

To view the online catalogue of Sine Wave Inverter Series, please click here.

Arcobat reader is required to view these catalogue, click here to download it.
