Backup Line Interactive Series (Standard & Long-run)

Standard models: BS-1200 / 1700 / 2200

Long-run models: BS-800L / 1200L / 1800L

With the most innovative design, the "BS" is made with several advantages you have never seen before on the step-wave UPS. The smart battery management with high charging current (up to 3A) is able to reduce lots of charging time during the regular operation. Also, the indication for special status, such as "Replace battery", "Alarm off", "In Charging", "Boost" & "Buck", allows you to know the UPS situation at real time; or, you may select "Load level" indication to replace the special status when place an order to us. Smart AVR with two steps of buck/boost makes the output voltage more stable. This is a low-price but high-performance UPS.

For the long-run units, the backup time can be as long as your external battery pack can provide, we also put more protection in the unit. The protection for reversed battery polarity is provided in case of a wrong connection. While if battery polarity was reversed, the UPS just doesn't work without any damage; and it will work until the connection is correct. (Click here for more information of the LCD display)

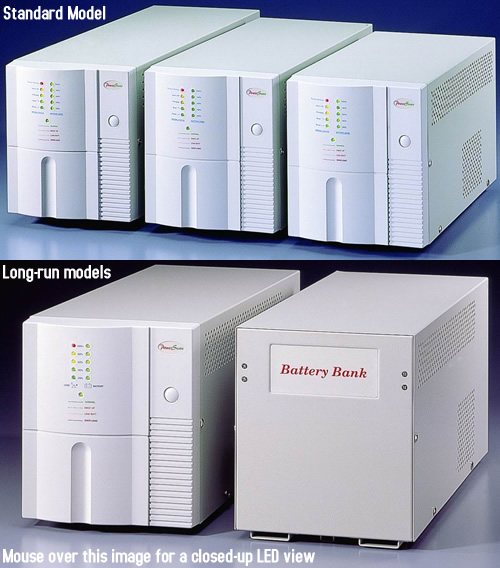

Backup Standby Series - BS-600/1200/1700/2200

Special Feature

Modified Sine Wave Stand-by UPS

Microprocessor Based Design.
True Line Interactive Structure with Smart Charging, Fast & Stable.
Backup time can be as long as your battery set can afford (for Long-run units).
Indication for Battery Level & Special Status (or Load level).
LCD available for the series (optional).
Extra Wide Input Range (+/-35%, optional).
All-in-one button for self-test, alarm-reset, & DC start.
Compatible with All Major O.S., including Windows, Linux, SCO UNIX, & DOS.
Double Protection for Over load / Short Circuit.

Specification Sheet

To obtain this product's specification sheet, please click here.

Arcobat reader is required to view these catalogue, click here to download it.
